Door Frame Roll Forming Machine
Created with Pixso. Australian Roller Shutter Door Frame Roll Forming Machine With 45# Steel Roller Material
Detail Information
Place of Origin:
CHINA
Certification:
CE/SONCAP/CSA
Name:
Roller Shutter Door Making Machine
Raw Material:
GGPL Sheets, G350-550
Shaft Diameter:
75mm
Roller Material:
45# Steel
Cutting Blade Material:
Cr12, Heat Treatment
Warranty:
12months
Packaging Details:
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Supply Ability:
10 UNITS/MONTH
Highlight:

door frame making machine

,

door panel roll forming machine

Product Description

Australian roller shutter door roll forming machine, roller shutter door roll forming machine



Quick Detail:

  1. Thickness : 0.4mm-0.6mm
  2. Material : G350-550, pre-painted steel
  3. Input width : 1220mm
  4. Effective width: 945+/-4mm
  5. Material weight : 5MT or higher
  6. Coil inner diameter : 510mm
  7. Driven way: by 11Kw with gear box
  8. Cutting way: by hydraulic power pack
  9. Cutting tolerance : ±1mm

Application:

This roller shutter door roll forming machine makes corrugated panels, not slats, to joint each other horizontally for manufacturing rolling shutter doors.

A roller shutter door panel roll forming machine has much similar function as a steel rolling shutter door slat roll forming machine does, and both roll forming machines have been designed for producing roller shutter doors.

Machine list:

  1. 5T*1250mm hydraulic de-coiler
  2. Roll former
  3. Hydraulic cutting device
  4. Run out rack
  5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons

Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW

  • Entry Roller & Manual Pre-shearing device (Un-powered)

To cut off the end of the final piece of sheets only

Working thickness: max. 0.8mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Good quality pre-painted coil
Thickness 0.4mm-0.6mm
Coil input width 1220mm
Carriage Frame design

Wall-plate-frame-design,

Plate thickness 18mm
Roll forming stages 28 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75mm
Main motor power 11Kw driven motor
Rolling speed of roll former 15-20m/min
Hydraulic group power 5.5 Kw
Material of cutting blade Cr12, hear treatment
Electric Voltage Standard 380V/50Hz/3PH or as requirements
Major Color of Machine Painted RAL 5015(Blue) or as requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, 3 units

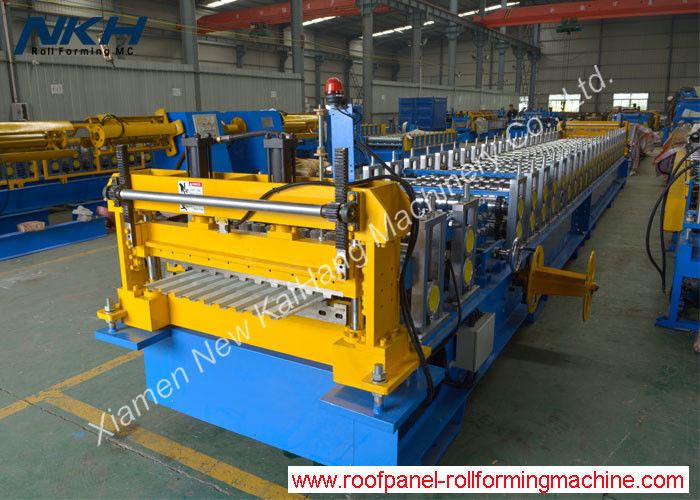

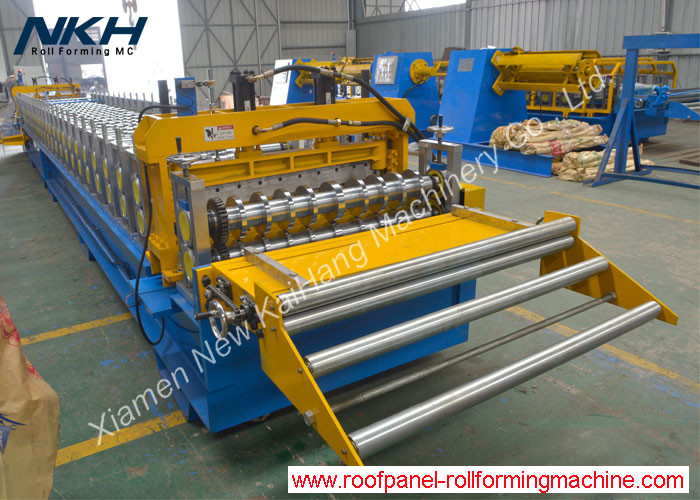

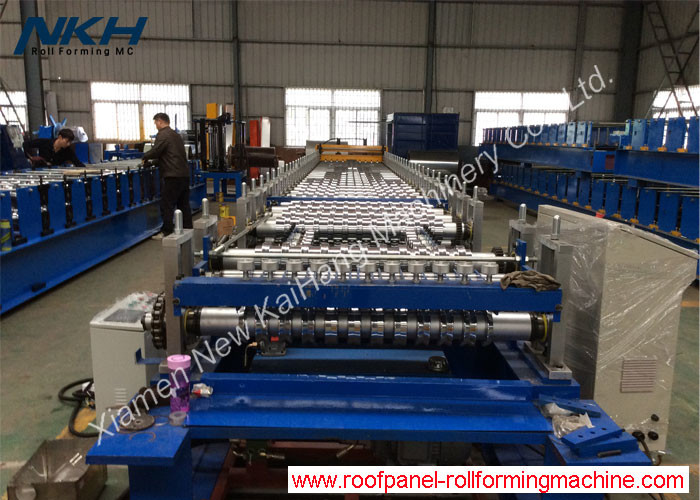

Profile Drawing/Layout/Equipment reference pictures:
