TD1015 Roofing Sheet Crimping Machine High Precision Corrugated Iron Curving Machine

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX23-203-1015
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Name: Sheet Metal Crimping Machine Thickness: 0.4mm-0.6mm
Crimp Diameter: 450mm Direction: Horizontal/Vertical Direction
Driven Motor: 1.1kw Siemens Motor Hydraulic Group: 5.5Kw
High Light:

standing seam curving machine

,

curving roll forming machine

Product Description

TD1015 hydraulic crimping curved machine, Siemens servo motor driving, high precision



Brief Introduction of Hydraulic Crimping Curved Machine:

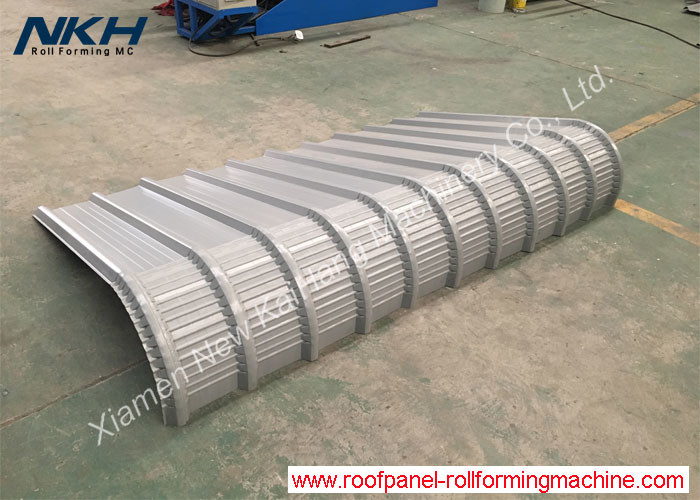

Hydraulic curving machine produces curved roof panels by pressing the roll formed roof sheets continuously as per requested angles or radius on the sheet with fixed length and after the pressing, crimped roof sheets or crimp curved roofing is made. There is a PLC control system for the hydraulic curving machine and through the HMI on PLC electric cabinet, customers can set the crimp quantities and crimp distance to reach the curved angles or radius. The thickness of roof panels has to be less than 1.0mm; the pressing dies will be designed exactly the same as the roof sheets.



Quick Detail:

  1. Thickness : 0.4-0.6mm
  2. Material : G550, PPGI
  3. Input width : 1220mm
  4. Effective width: 1000mm

Machine list:

  1. Feeding table with rubber rollers
  2. Servo motor feed in
  3. Quick change pressing dies with cassette design
  4. Horizontal or vertical direction operation design
  5. PLC control systems

Description/Technical Parameter details of complete line:

  • details as below table :
Suitable roll forming material Color steel sheet
Thickness 0.4mm-0.6mm
Driven motor 1.1Kw Siemens brand motor
Carriage Frame design Horizontal or vertical direction
Hydraulic group 5.5Kw
The min. flat edge 350mm
Curved Radius 450mm
Pressing dies Convex/Concave
Electric Voltage Standard 380V/50Hz/3PH or as the customer's requirements
Major Color of Machine Painted RAL 5015(Blue) or as per customer’s requirements

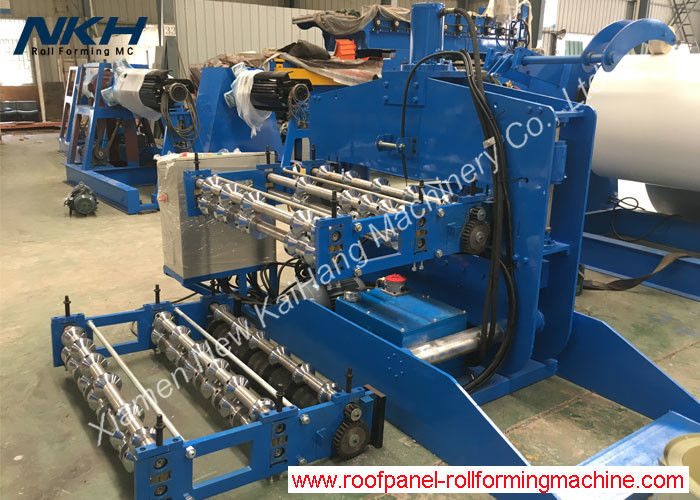

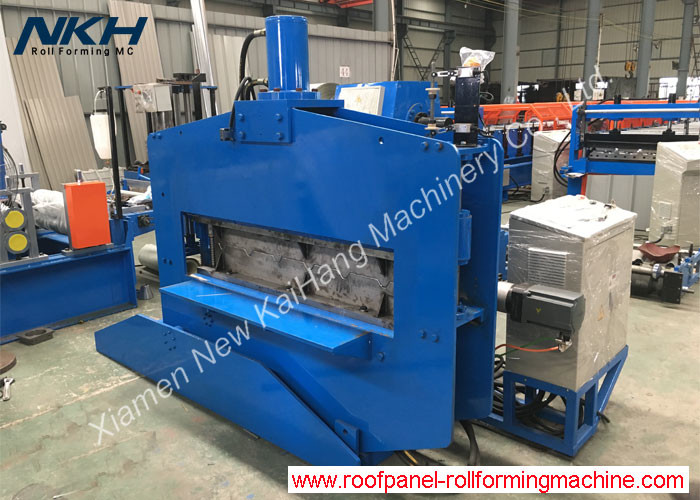

Profile Drawing/Layout/Equipment reference pictures:

TD1015 Roofing Sheet Crimping Machine High Precision Corrugated Iron Curving Machine 0
