Galvanized Sheet Metal Roll Forming Machines , Standing Seam Metal Roof Machine

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX71-478
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Name: Standing Seam Panel Machine Roller Material: 45# Steel
Raw Material: GI/Galaluminium Sheets Shaft Diameter: 75mm
Cutting Blade Material: Cr12, Heat Treatment Coil Weight: 3T Or As Request
High Light:

standing seam metal roof machine

,

standing seam panel machine

Product Description

Seam lock roll former, galvanized sheets roll forming machine, 71 - 478

Quick Detail:

  1. Thickness : 0.4-0.8mm
  2. Material : GI/Alu-zinc/ Aluminum/PPGL
  3. Input width : 600mm
  4. Effective width: 478mm
  5. Material weight : 3MT
  6. Coil ID : 510mm
  7. Driven way: by 7.5Kw driven motor
  8. Cutting way: by 4.0Kw hydraulic cutting device
  9. Cutting tolerance : ±1mm

Application:

The standing seam roof panels have a concealed fixing or seaming method by turning up the edges of two adjacent panels, and then folding or interlocking them. In this way, the seaming or fixing parts are invisible, and therefore sometimes we called the panels concealed fixing panels! The machine got its name as concealed fixing standing seam roll forming machine accordingly! Also, the standing seam roof panel system has hidden fasteners, so the machine has another name joint-hidden or fastener-hidden roll forming machine.



Machine list:

  1. 3T*600mm hydraulic un-coiler
  2. Polythene film device as request
  3. Roll former
  4. Hydraulic cutting device
  5. Run out table
  6. PLC control systems

Description/Technical Parameter details of complete line:

  • 3TX600mm Hydraulic Un-Coiler

Expansion system controlled by hydraulic group

Link-connect expanding system

Pump power=1.5KW

Load capacity=3 Ton

Coil Inner – diameter =451-530 mm

Coil outer-diameter=Max. 1500 mm

Coiler Width=Max. 600 mm

  • Polythene film on device before feed in
  • Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control,

To cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material PPGI/PPGL/GI/ALU-ZINC sheets
Thickness 0.4mm-0.8mm
Coil input width 610mm
Carriage Frame design Wall-plate-frame-design with 18mm wall thickness
Rolling mills forming stages 18 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75mm
Main motor power 7.5Kw with reducer
Rolling speed of roll former 15m/min
Hydraulic group power 4.0 Kw
Cutting way Hydraulic cutting with waste after cut-off
Electric Voltage Standard 380V/50Hz/3PH or as requirements
Machine Color Painted RAL 5015(Blue) or as requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack 4 meter long, rolled type

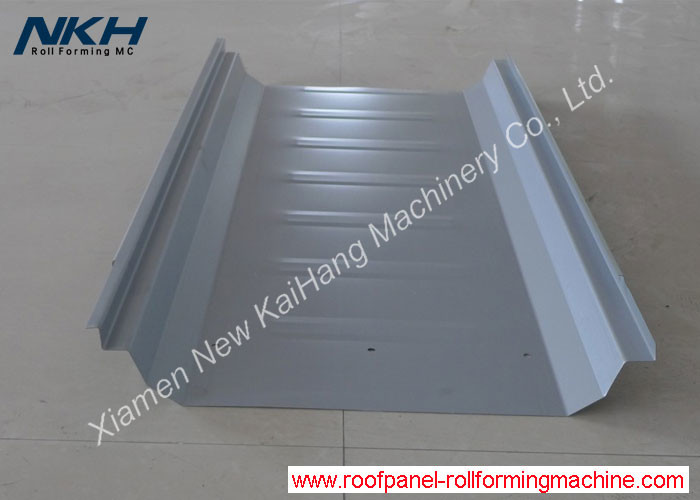

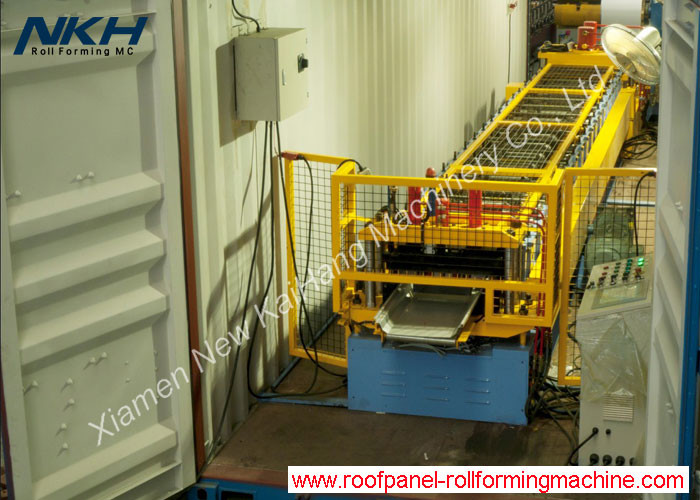

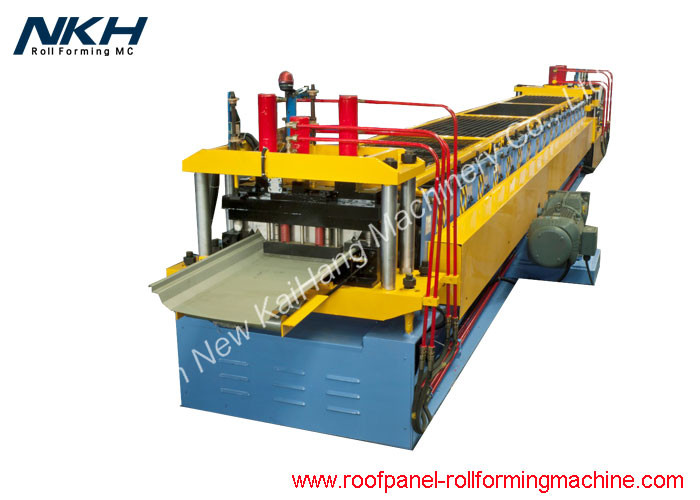

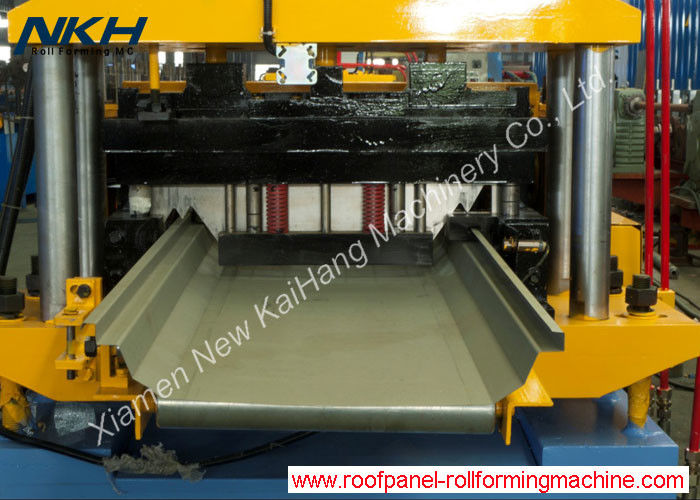

Profile Drawing/Layout/Equipment reference pictures:
