Name:	Roof Sheet Rolling Machine	Weight:	5T Or As Per Request
Control System:	PLC Control System	Roller Material:	45# Steel
Raw Material:	Pre-painted Coil Sheets, Soft Material	Shaft Diameter:	75mm
Cutting Blade Material:	Cr12, Heat Treatment
High Light:	glazed tile roll forming machine , roof sheet rolling machine

Product Description

Roofing tile roll forming machine for Indonesia popular profile, roof tile machine

Quick Detail:

Thickness : 0.4mm-0.6mm
Material : High quality pre-painted coil
Input width : 914mm
Effective width: 800mm
Material weight : 5MT normally
Coil inner diameter : 508mm
Driven way: by driven AC motor or Siemens motor to improve the precision
Cutting way: by hydraulic power pack
Cutting tolerance : ±1mm

Application:

Metal step roof tiles produced by glazed tile roll forming machine from high quality pre-painted sheets most time apply as roofing on Villas or some residential buildings.

There is only one but key difference between a metal glazed roof tile and a regular metal roof panel: Steps! Generally speaking, a regular metal roof panel with steps is called a metal glazed roof tile!

Machine list:

Hydraulic un-coiler or manual de-coiler rack
Roll former
Hydraulic stair pressing device
Hydraulic cutting device after step tile pressing
Run out rack
PLC control systems

Description/Technical Parameter details of complete line:

5TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW, manual frequency speed control

Other design such as snubber arm /support arm/coil car as per request

Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control,

To cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

Roll forming machine with stair-drawing and cutting details as below table :

Suitable roll forming material	Color steel sheet or galvanized steel sheet, soft material
Thickness	0.4mm*0.6mm
Coil input width	914mm
Carriage Frame design	Wall-plate-frame-design /New-stand-frame-design
Rolling mills forming stages	14 stages
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75mm
Main motor power	5.5Kw/7.5Kw with reducer
Production speed	3-4m/min (based on 6 meter long, 350mm stair distance)
Stair depth	16mm
Stair distance	350mm or as per order
Hydraulic group	7.5 Kw with professional fans cooling system
Material of cutting blade	Cr12, hear treatment
Electric Voltage Standard	380V/50Hz/3PH or as the customer's requirements
Major Color of Machine Painted	RAL 5015(Blue) or as per customer’s requirements

PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Control the quantity, drawing length (250-350mm) & cutting length (min.800mm) automatically.

Cut-to-length tolerance≤±1mm

Control Voltage 24V

Product Rack Un-powered, 3 units

Profile Drawing/Layout/Equipment reference pictures:

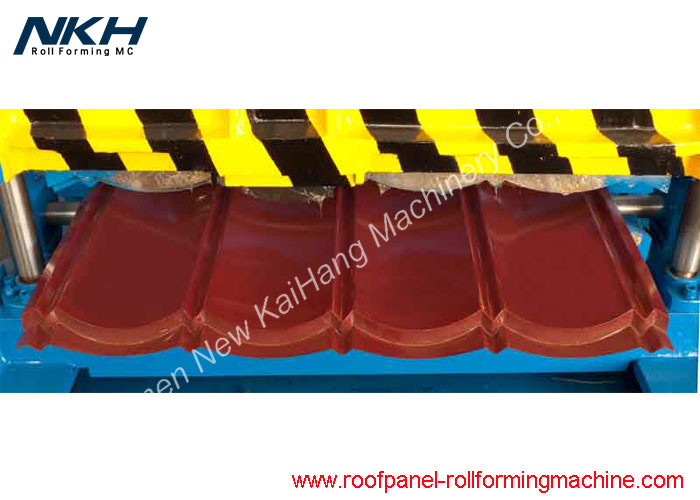

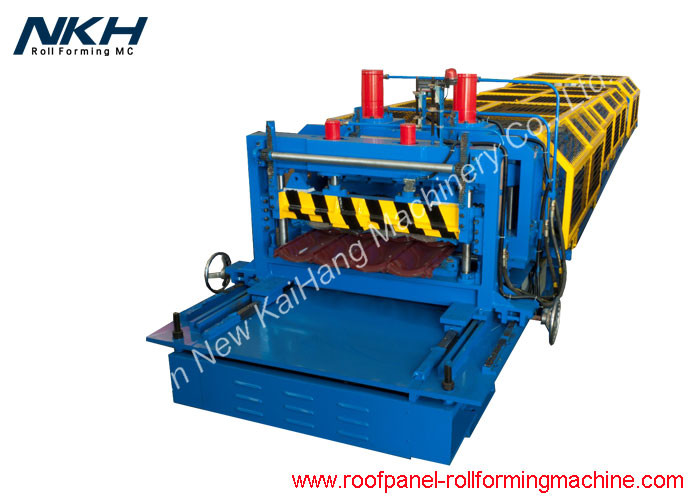

PLC Control Roof Tile Roll Forming Machine , Roof Profiling Machine CE Approved 0
