Fascia Panel Ceiling Roll Forming Machine Malaysia Standard Type For G350 PPGI Material

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX185
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Coil Weight: 1.5T Or As Request Control System: PLC Control System
Roller Material: 45# Steel, CNC Lathes, Hard Chrome Coated Raw Material: PPGI Sheets, G245-G550
Shaft Material: 45#, High Precision Cutting Blade Material: Cr12, Heat Treatment
High Light:

light keel roll forming machine

,

ceiling roll forming machine

Product Description

Ceiling roll forming machine, roll former, fascia panel, Malaysia standard type

Application:


This production line has been designed to produce metal wall or sandwich panels with PU or Polyurethane insulated and various decoration patterns embossed, engraved or printed on the metal face.

This profile is widely used all around the world.


Quick Detail:

  1. Thickness : 0.42mm
  2. Material : G350 PPGI
  3. Input width : 290mm
    1. Effective width: 185mm
    2. Material weight : 3Tons
    3. Coil inner diameter : 480mm
    4. Driven way: by 7.5Kw driven motor
    5. Cutting way: after cut-off, there is waste
    6. Cutting tolerance : ±1mm

Machine list:

  1. 3TX600mm Hydraulic Un-Coiler
  2. Roll forming machine
  3. Hydraulic cutting device
  4. Run out rack
  5. PLC control system

Description/Technical Parameter details of complete line:

  • 3TX600mm Hydraulic Un-Coiler

Hydraulic system for expansion coil-inner-hole with 4 palms
Link-connect expanding system
Pump power=1.5KW
Drag off turning type
Load capacity=3Ton
Coil Inner – diameter =510 30mm
Coil outer-diameter=Max.1500 mm
Coiler Width=Max. 600 mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming materialColor steel sheet or galvanized steel sheet
Thickness0.42mm
Coil input width290mm
Carriage Frame designWall-plate-frame-design
Roll forming stages14 stages
Material of forming roller45# steel, CNC lathes, Hard Chrome Coated
Shafts DiameterΦ75mm
Main motor power7.5w with reducer
Rolling speed of roll former15m/min
Hydraulic group power4.0 Kw
Material of cutting bladeCr12, hear treatment
Electric Voltage Standard220V/60Hz/3PH or as requirements
Major Color of Machine PaintedRAL 5015(Blue) or as per customer’s requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, rolled type, 4 meter long

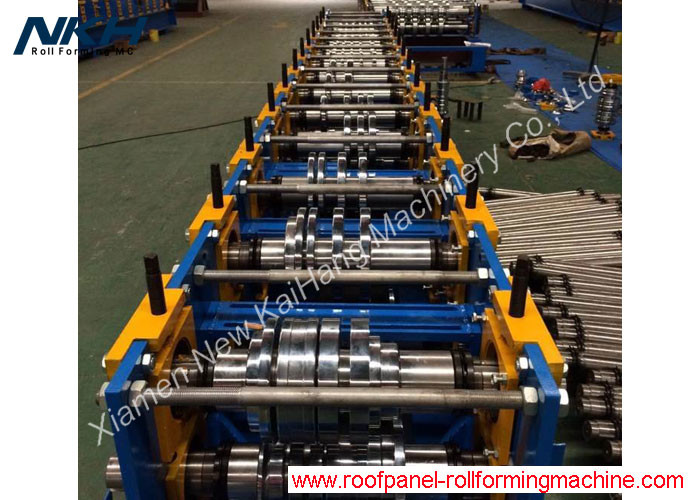

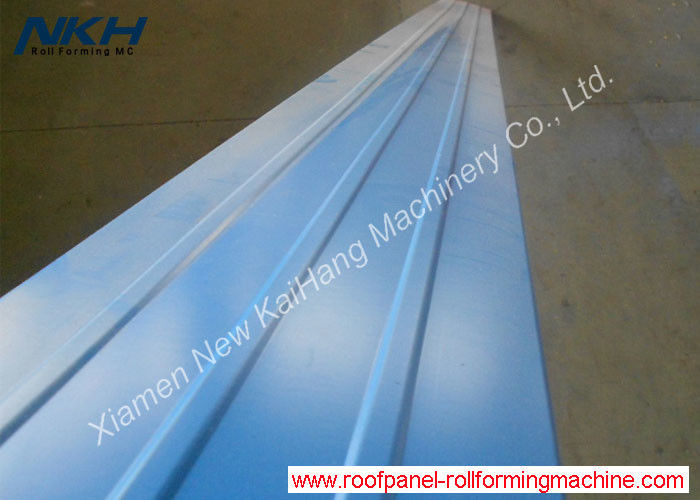

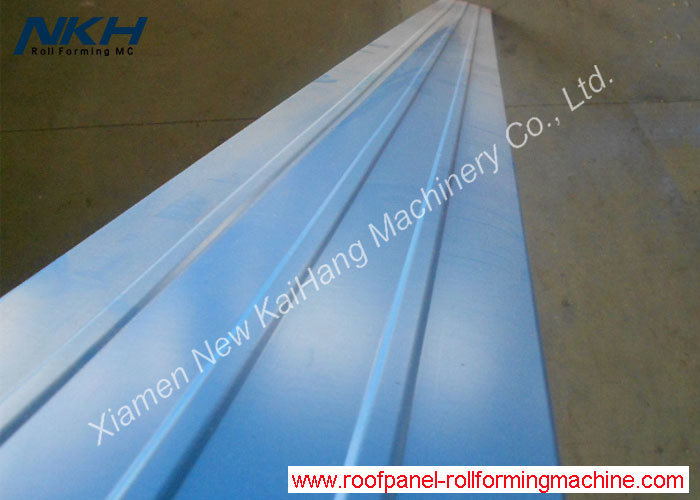

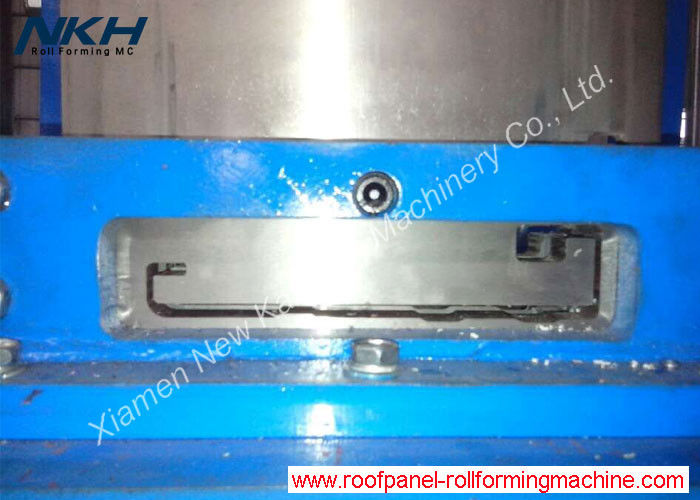

Profile Drawing/Layout/Equipment reference pictures:
