Roofing Corrugated Sheet Roll Forming Machine With 18mm Height 914 mm Input

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX18-76.2-762
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Name: Corrugated Sheet Making Machine Control System: PLC Control System
Roller Material: 45# Steel, CNC Lathes, Hard Chrome Coated Cutting Blade Material: Cr12, Heat Treatment
Weight: 5T Or As Request Raw Material: Pre-painted Sheets, 245-550Mpa
Shaft Material: 45#, High Precision
High Light:

corrugated sheet roll forming machine

,

wall panel roll forming machine

Product Description

Corrugated sheets making machine, 18mm height, 914mm input



Quick Detail:

  1. Thickness : 0.4-0.8mm
  2. Material : G345-550, pre-painted sheets
  3. Input width : 914mm
    1. Effective width: 762+/-4mm
    2. Material weight: 5 tons cap.
    3. Coil inner diameter : 508mm
    4. Driven way: by 7.5KW driven motor
    5. Cutting way: by 4kw hydraulic power pack
    6. Cutting tolerance : ±1mm

Application:

Generally, one corrugated sheet roll forming machine can produce sinusoidal sheets for roofing and siding panels with 762/838/1080 effective widths, 76.2mm wave distance and 18mm wave height. It’s worth to repeat that one corrugated sheet roll forming machine can make all above metal sheets.

Most importantly, the corrugated sheet roll forming machine line can work both automatically and manually.

Machine list:

  1. Hydraulic de-coiler with/without coil cart
  2. Roll forming machine
  3. Hydraulic cutting device
  4. Run out table or automatic stacking device if with high speed
  5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons

Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW,

Manual frequency speed control

  • Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control

To cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 0.38mm-0.5mm
Coil input width 914mm
Carriage Frame design Wall-plate-frame-design /New-stand-frame-design
Rolling mills forming stages 18 stages
Material of forming roller

45# steel, CNC lathes, Hard Chrome Coated

Option : with roller heat treatment

Shafts Diameter Φ75mm
Main motor power 7.5Kw with reducer
Rolling speed of roll former 18m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power 4.0 Kw
Material of cutting blade Cr12, hear treatment/Cr12Mov, heat treatment
Electric Voltage Standard 380V/50Hz/3PH or as the customer's requirements
Major Color of Machine Painted RAL 5015(Blue) or as per customer’s requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, 3 units

Packing standard:

Nude cargoes for roll former

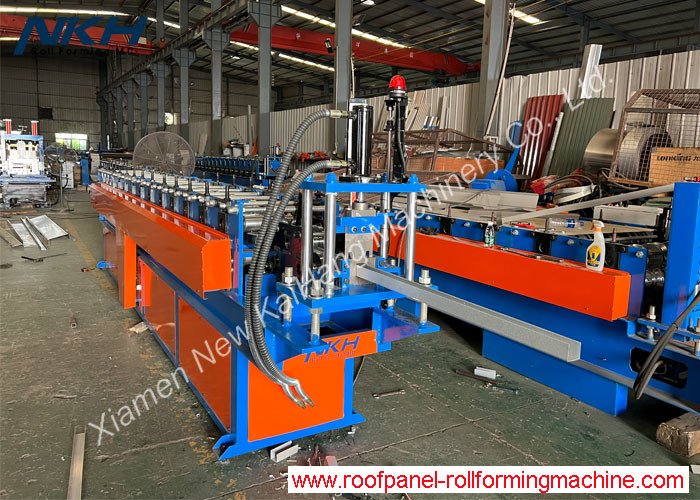

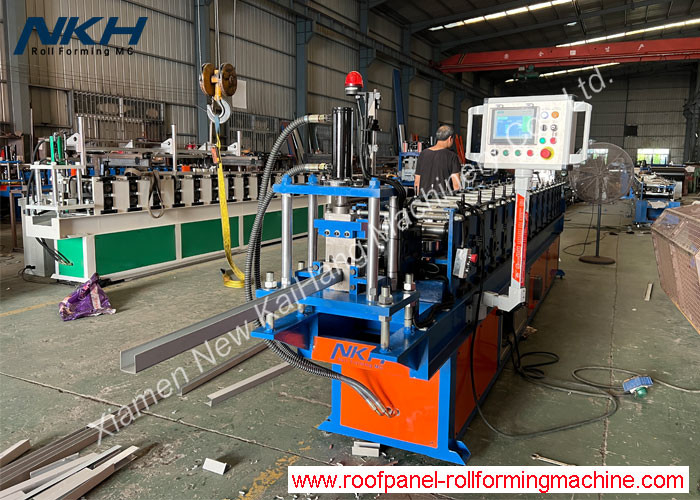

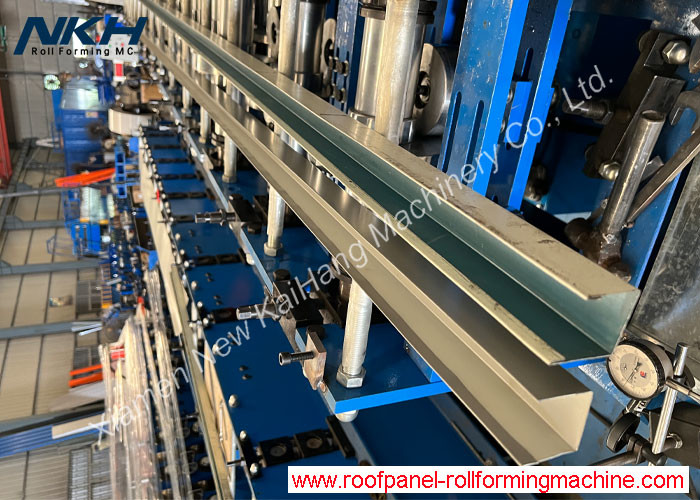

Profile Drawing/Layout/Equipment reference pictures:



Roofing Corrugated Sheet Roll Forming Machine With 18mm Height 914 mm Input 0Roofing Corrugated Sheet Roll Forming Machine With 18mm Height 914 mm Input 1Roofing Corrugated Sheet Roll Forming Machine With 18mm Height 914 mm Input 2
