PLC Control Roof Panel Roll Forming Machine With Double Layer Design

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX6, YX18
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Name: Double Layer Roll Forming Machine Control System: PLC Control System
Raw Material: PPGI/Galvanized/Alu-Zinc/PPGL Sheets, G245-550 Shaft Material: High Grade No.45 Forged
Cutting Blade Material: Cr12, Heat Treatment Roller Material: 45# Steel
Weight: 5T
High Light:

corrugated sheet roll forming machine

,

roofing sheet roll forming machine

,

Double Layer Roof Roll Forming Machine

Product Description

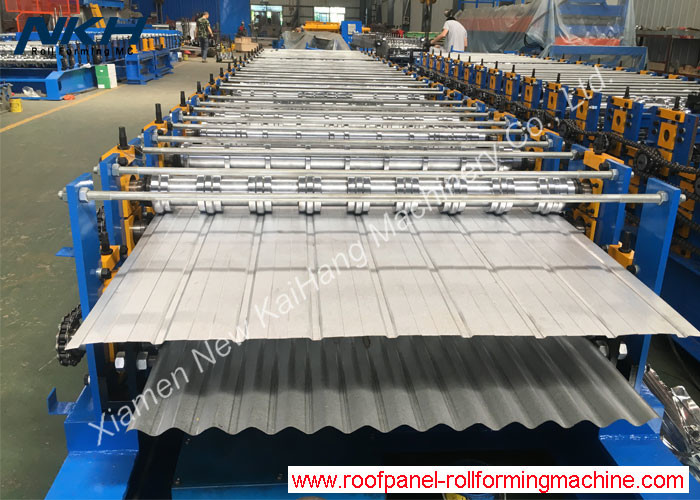

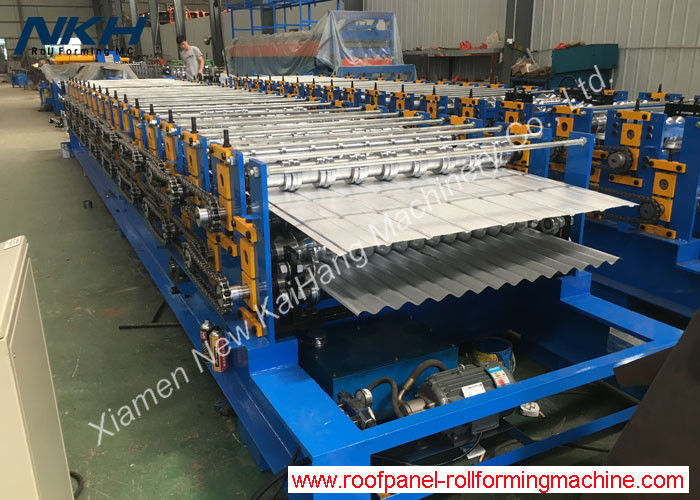

Roll former with double layer design, for roofing/ wall/ corrugated panel



Application:

It shall be pointed out that the two layers of roll forming parts on this double layer roll forming machine cannot work at the same time, which means each one of the roll forming systems (top roll forming and bottom roll forming) will stop when the other is working. The two layer or two levels roll forming parts share a same motor and the change of running between top and bottom roll forming part is made through a clutch equipped on this double deck roll forming machine.

Quick Detail:

  1. Thickness : 0.4-0.8mm
  2. Material : G550/G350, pre-painted sheets
  3. Input width : 914/1000/1219/1250mm
  4. Coil ID: 508mm
  5. Effective width:760/820/1000+/-4mm
  6. Material weight: 5Tons cap.
  7. Driven motor: 11Kw motor with gear box normally
  8. Cutter Material: Cr12, heat treatment

Machine list:

  1. Hydraulic De-coiler
  2. Dual layer roll former
  3. Two sets of hydraulic cutting device
  4. Run out table or automatic stacking device
  5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW, manual frequency speed control

Other design such as snubber arm /support arm/coil car as per request

  • Entry Roller & Manual Pre-shearing device

Two sets of pre-shearing device

to cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 0.4mm-0.8mm
Coil input width 914/1000/1219/1250mm
Carriage Frame design Wall-plate-frame-design, dual layer
Roll forming stages 16/18, 18/18, 20/20 stages for example
Material of roller

45# steel, CNC lathes, Hard Chrome Coated

Option : with roller heat treatment

Shafts Diameter Φ75mm
Main motor power 5.5Kw with reducer
Roll forming speed 15-20m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power 4.0 Kw or 5.5Kw
Material of cutter Cr12, hear treatment/Cr12Mov, heat treatment
Electric Voltage Standard 380V/50Hz/3PH or as requirements
Major Color of Machine RAL 5015(Blue) or as requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, 3 units
  • Packing details

Features:

Packing standard:

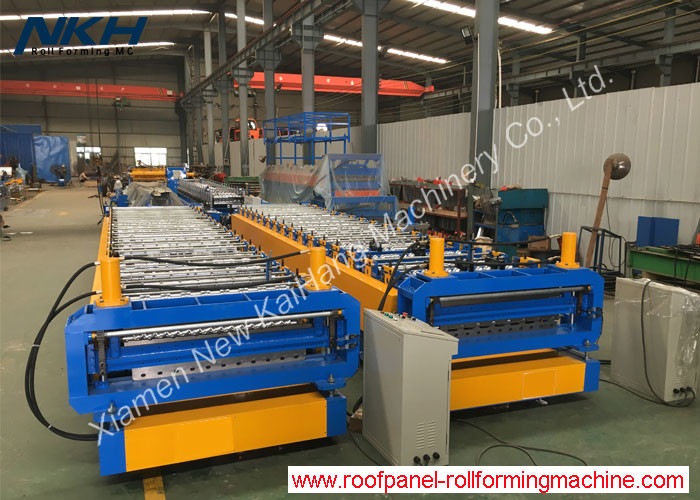

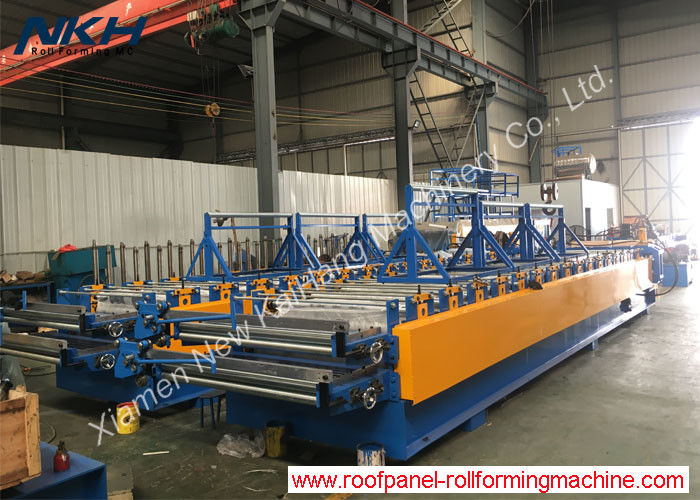

Profile Drawing/Layout/Equipment reference pictures:



PLC Control Roof Panel Roll Forming Machine With Double Layer Design 0PLC Control Roof Panel Roll Forming Machine With Double Layer Design 1PLC Control Roof Panel Roll Forming Machine With Double Layer Design 2
