Durable Roof Panel Roll Forming Machine Cut To Length Control For Roofing Profile Lines

Product Description

Roll forming equipments for roofing profile lines, metal sheets, cut to length control

Brief Introduction:

Metal sheet roll formers are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here.

The 32-250-1000 type panel with four pitches, with anti-capillary grooves for good overlapping design is also classic design in South Asia market
Quick Detail:

1. Thickness : 0.4-0.8mm
2. Material : G550, pre-painted sheets
3. Input width : 1219mm
4. Coil ID: 508mm
   1. Effective width:1000+/-4mm
   2. Material weight: 5Tons cap.
   3. Driven motor: by 7.5Kw or 11kw motor with gear box or higher
   4. Cutter Material: Cr12, heat treatment

Machine list:

1. 5T*1250mm hydraulic de-coiler as standard design
2. Roll former
3. Hydraulic cutter
4. Run out rack or 8 meter pneumatic stacker for high speed
5. PLC control system

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler

You can adopt to 5TX1250mm Hydraulic Un-Coiler as standard design or you can also use manual one when the budget is limited

• Entry bench & Manual Pre-shearing device

to cut off the end of the final piece of sheet only
Working thickness: max. 0.8mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Cut to length control

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Schneider brand low voltage electric elements

• Product Rack rolled type normally

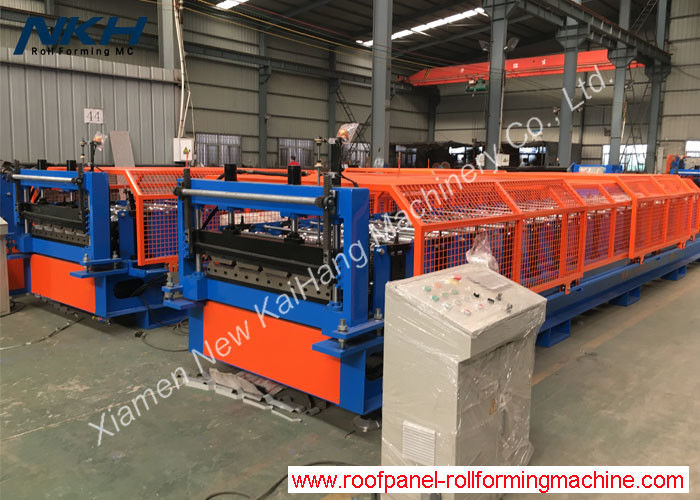

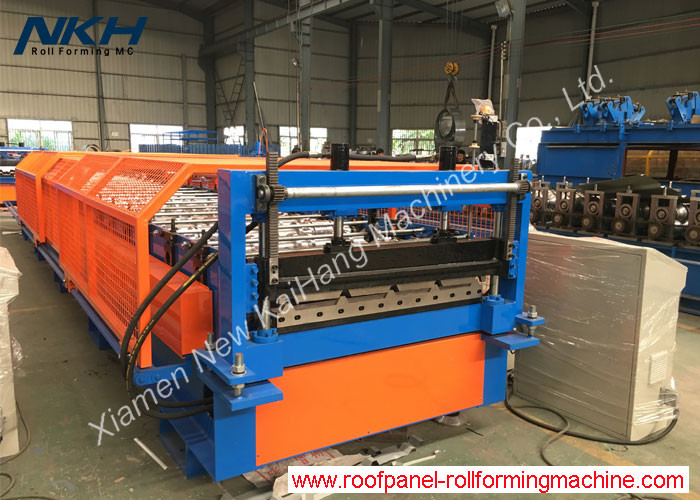

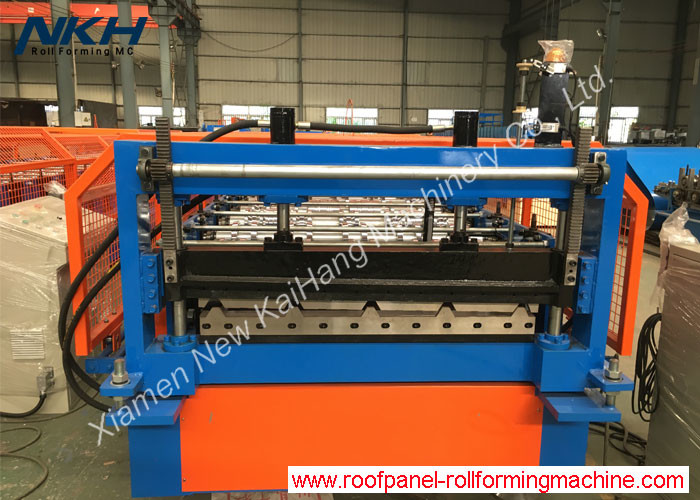

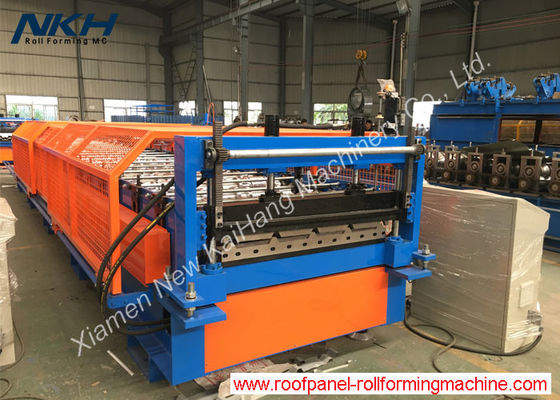

Profile Drawing/Layout/Equipment reference pictures:
