3MT Capacity 2 In 1 Un-Coiler Un Winder With Hydraulic Pack 12 Months Warranty

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: 3T*600MM
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES WITH ROLL FORMER IN 20FT/40FT CONTAINER
Delivery Time: 10 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Condition: New Tile Type: Work With Roll Forming Machine/building Material Machinery
Use: Roof/wall Production Capacity: 12-15m/min
Color: Client's Request Warranty: 12months
High Light:

cut to length line machine

,

hydraulic decoiler

Product Description

Un-winder with hydraulic pack for upright/ heavy gauge box beam/ presser, 3MT capacity, 2 in 1 un-coiler



Application:

Heave gauge driven de-coiler with straightening or leveling is working with the presser and different roll former such as upright, slot angle, beam, highway guardrail profile, box panel with fast speed for efficient production

Quick Detail:

  1. Thickness : 2.0-2.5mm
  2. Material : GI,PPGI, 345Mpa
  3. Input width : < 400mm
  4. Material weight : 3MT
  5. Rotation way: by driven motor
  6. Coil inner diameter : 470-510mm

Description/Technical Parameter details of the de-coiler

Coil inner hole expand by manual, four palms

Motorized driving coil rotation, auto stop/start control

Load capacity=2Ton

Coil Inner – diameter: 450-530 mm

Coil outer-diameter=Max.1200 mm

Coiler Width=Max. 300 mm

Pre-straighten device share in the same driving motor of un-coiler

7 shafts for straightening the sheet

Solid shaft, made from GCr15, hart chrome-coated

Features:

The de-coiler is touch the roll former speed by limit switch

To start/stop automatically

Suit with 15-18 mpm roll former

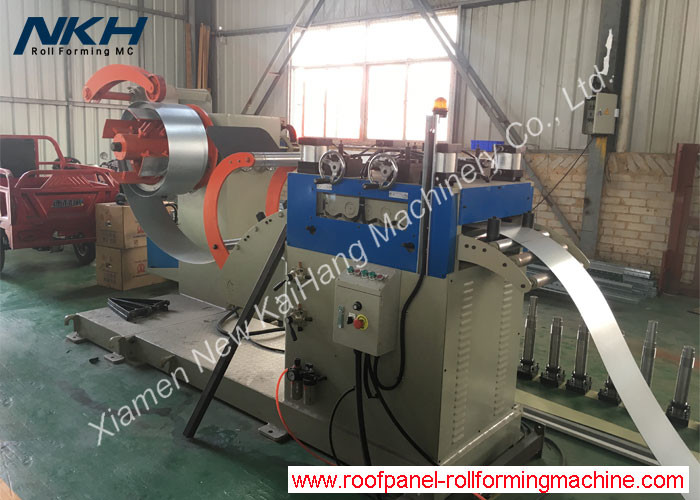

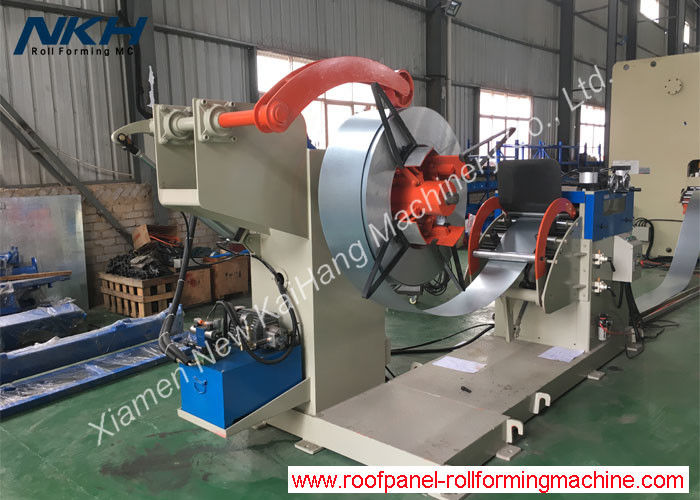

Profile Drawing/Layout/Equipment reference pictures:



3MT Capacity 2 In 1 Un-Coiler Un Winder With Hydraulic Pack 12 Months Warranty 03MT Capacity 2 In 1 Un-Coiler Un Winder With Hydraulic Pack 12 Months Warranty 13MT Capacity 2 In 1 Un-Coiler Un Winder With Hydraulic Pack 12 Months Warranty 2
