Twin Head Driven Un Coiler Color Customized For Boltless Roofing Roll Former

Product Description

Twin head driven un - coiler for boltless roofing roll former, quick coil loading, de-coiler, no hydraulic group

Application:

A de-coiler is equipment for unrolling the steel coils and always works for different roll forming machine such as standing seam panel, pipe panel, and decorative profile and embossing machine line etc.

3 MT twin head de-coiler normally used for trim flashing, ridge cap, roof batten, downpipe, gutter, fence roll forming machine

Twins head design can save the un-loading/ loading time of the coil to improve the production effectively

Quick Detail:

1. Thickness : 0.4mm-0.8mm
2. Material : Galvanized Sheets, PPGL, G300-G550
3. Input width : < 600mm
4. Material weight : 3MT
5. Rotation way: by driven motor

Description/Technical Parameter details of the de-coiler

Powered motorized running type

Double head core shaft design

Link-connect expanding system

Coil Width= Max.300mm

Load capacity= Max.2Ton

Coil inner–diameter=450-530mm

Outside-diameter: Max. 1600mm

Retarding Motor to turn the coil, Motor: 1.5KW per coil

Delta brand inverter

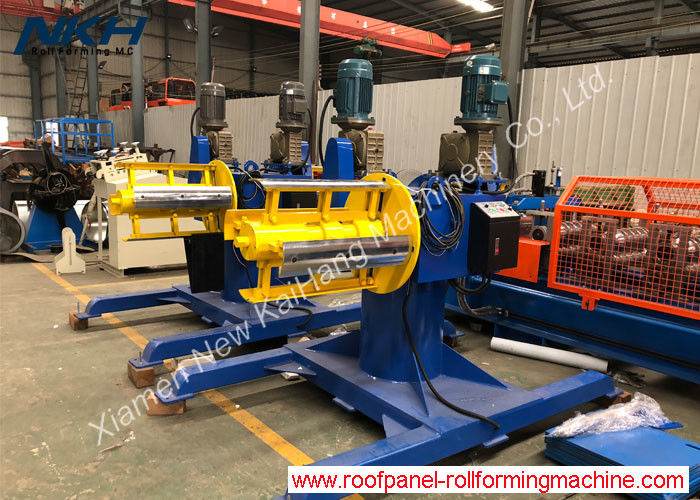

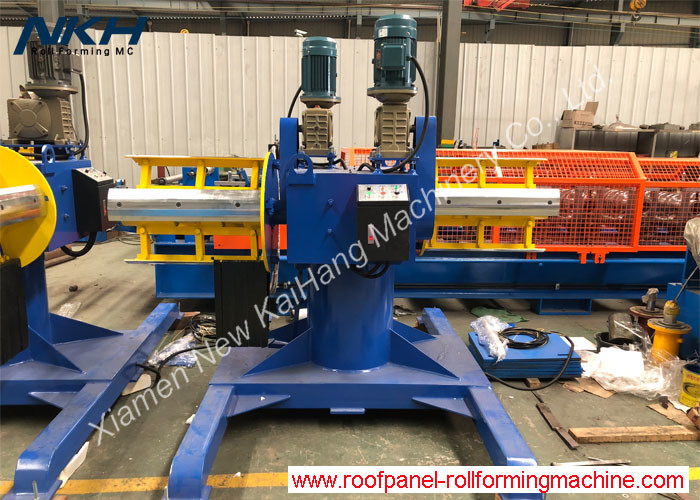

Profile Drawing/Layout/Equipment reference pictures:
