3MT Capacity Hydraulic Un Winder With Hydraulic Pack Max. 600mm Coil Width

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: 3T*600MM
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES WITH ROLL FORMER IN 20FT/40FT CONTAINER
Delivery Time: 10 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Condition: New Use: Roof/wall
Production Capacity: 12-15m/min Tile Type: Work With Roll Forming Machine/building Material Machinery
Color: Client's Request Warranty: 12months
High Light:

light gauge cut to length line

,

hydraulic decoiler

Product Description

Un-winder with hydraulic pack for gutter roll forming machine, 3MT capacity, Max. 600mm coil width



Quick Detail:

  1. Thickness : 0.4mm-0.8mm
  2. Material : Galvanized Sheets, PPGL, G245-G550
  3. Input width : < 600mm
  4. Material weight : 3MT

Application:

A hydraulic de-coiler is equipment for unrolling the steel coils and always works for gutter, standing seam, seam lock roll forming machine, rainspout roof making machine and embossing machine line etc.

Description/Technical Parameter details of the de-coiler

Hydraulic system for expansion coil-inner-hole with 4 palms

Link-connect expanding system

Pump power=1.5KW

Drag off turning type

Load capacity=3Ton

Coil Inner – diameter =510 30mm

Coil outer-diameter=Max.1500 mm

Coiler Width=Max. 600 mm



Features:

Drag by roll former

Hydraulic group to expand or loose

Suit with 15mpm roll former

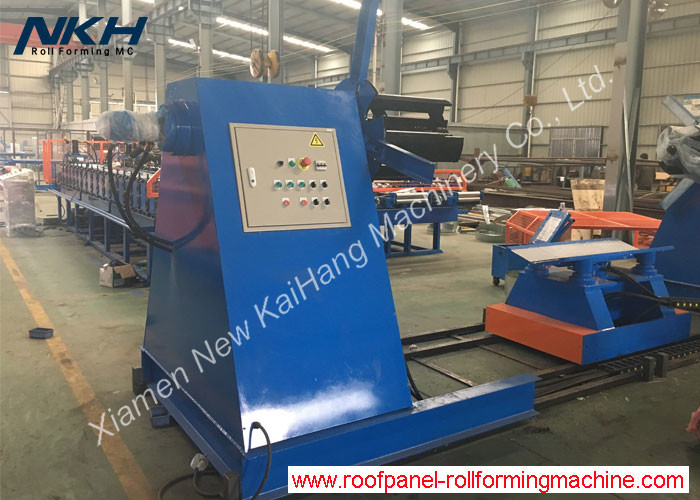

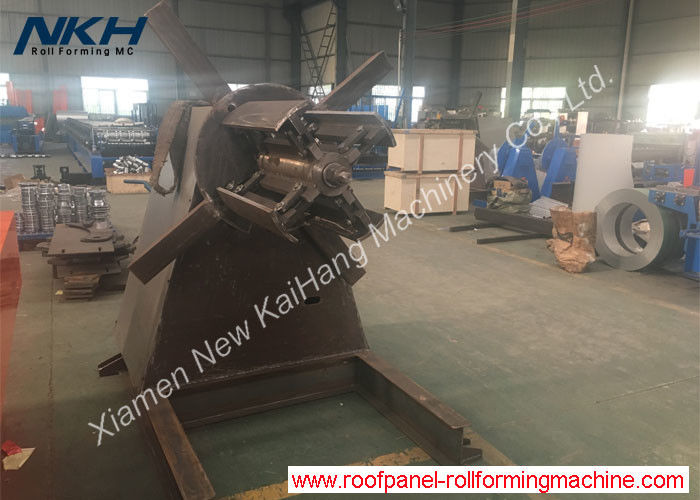

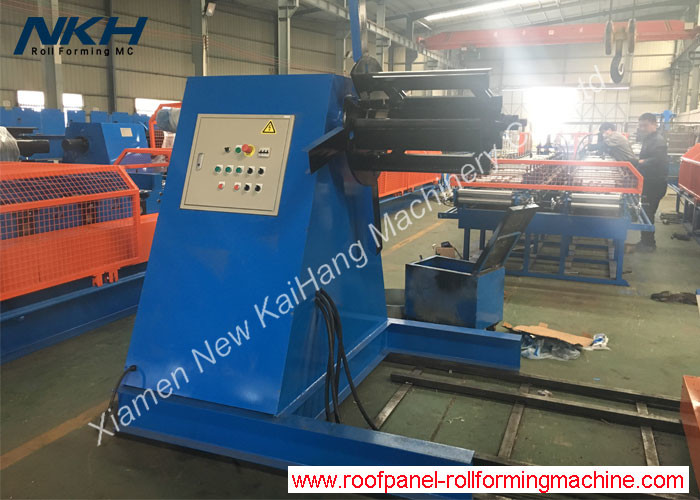

Profile Drawing/Layout/Equipment reference pictures:



3MT Capacity Hydraulic Un Winder With Hydraulic Pack Max. 600mm Coil Width 03MT Capacity Hydraulic Un Winder With Hydraulic Pack Max. 600mm Coil Width 13MT Capacity Hydraulic Un Winder With Hydraulic Pack Max. 600mm Coil Width 23MT Capacity Hydraulic Un Winder With Hydraulic Pack Max. 600mm Coil Width 3
