High Precision Stud And Track Roll Forming Machine With Presser Punching

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX37-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Coil Weight: 3T Or As Request Control System: PLC Control System
Roller Material: 45# Steel, CNC Lathes, Hard Chrome Coated Raw Material: Aluminium Sheets, G245
Shaft Material: 45#, High Precision Cutting Blade Material: Cr12, Heat Treatment
High Light:

ceiling roll forming machine

,

furring channel roll forming machine

Product Description

Roll forming machine with presser punching in Australia ceiling design, decorative panel



Application:



This production line has been designed to produce metal wall or sandwich panels with PU or Polyurethane insulated and various decoration patterns embossed, engraved or printed on the metal face.

This profile is widely used all around the world.



Quick Detail:

  1. Thickness : 0.8-1.2mm
  2. Material : G350 PPGI
  3. Input width : 680mm
    1. Effective width: 599mm
    2. Material weight : 3Tons
    3. Coil inner diameter : 480mm
    4. Driven way: by 5.5Kw driven motor
    5. Cutting way: after cut-off, there is waste
    6. Cutting tolerance : ±1mm

Machine list:

  1. Hydraulic Un-coiler with pre-leveling device
  2. Hydraulic punching or presser to be provided by the buyer
  3. Roll forming machine
  4. Hydraulic cutting device
  5. Run out rack
  6. PLC control system

Description/Technical Parameter details of complete line:

  • Hydraulic Un-coiler with pre-leveling device

Hydraulic system to expand coil inner hole, four palms

Motorized driving coil rotation, auto stop/start control, 3KW

Load capacity=3Ton

Coil width: 700mm

Coil Inner-diameter: Φ510±30mm

Coil Outer-diameter Max. Φ1200mm

Snabber arm driven by pneumatic cylinder

Pre-straighten device with 7 shafts, four over three

Solid shaft Φ60, made from GCr15, hart chrome-coated

Four pneumatic cylinders to press the sheet

Max. line speed: 15mpm

Air source to be provided by the buyer

  • Roll forming machine details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 0.8-1.2mm
Coil input width 680mm
Carriage Frame design Wall-plate-frame-design
Roll forming stages 16 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75mm
Main motor power 5.5w with reducer
Rolling speed of roll former 15m/min
Hydraulic group power 4.0 Kw
Material of cutting blade Cr12, hear treatment
Electric Voltage Standard 220V/60Hz/3PH or as requirements
Major Color of Machine Painted RAL 5015(Blue) or as per customer’s requirements
  • Hydraulic Cutting Device

Stop to cut, Post cut, Slug Breaker

Cutting tool material: Cr12, Heat treatment

Total one set of cutting blades

Hydraulic power pack, Pump motor =4KW

  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, rolled type, 4 meter long

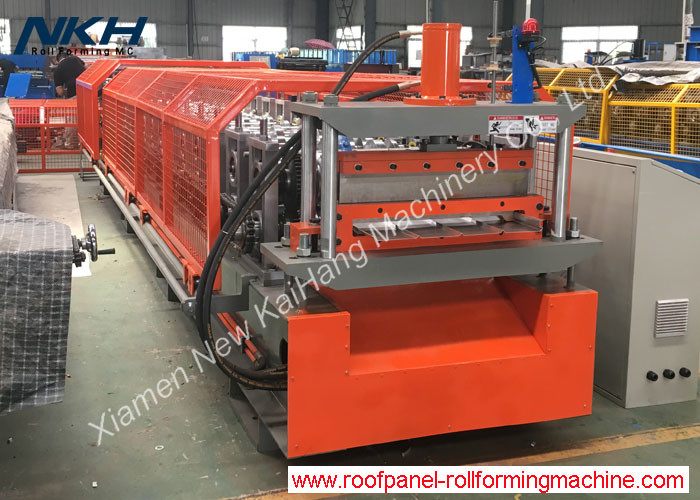

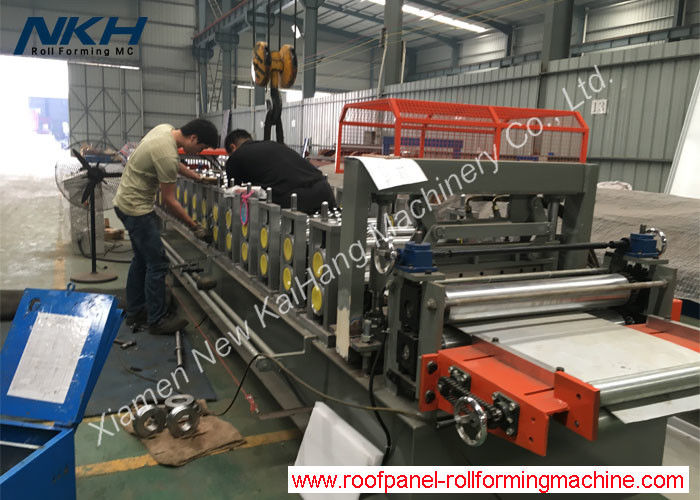

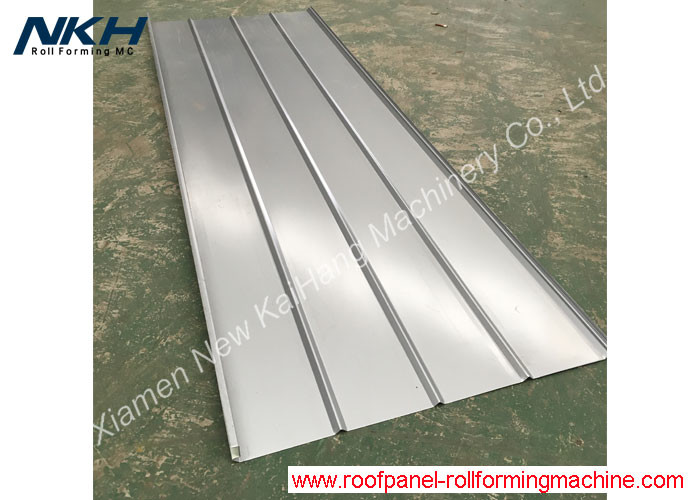

Profile Drawing/Layout/Equipment reference pictures:

High Precision Stud And Track Roll Forming Machine With Presser Punching 0

High Precision Stud And Track Roll Forming Machine With Presser Punching 1
